Product Overview & Features Primary Application:

Specially produced for use in flange joints with bolts. Wider Use:

Widely used as thermal insulation tape for:

• High-temperature resistant electrical cable
• Wire covering
• Pipe wrapping
• General Specifications
• Max Temperature (Glass Fiber Reinforced): 650°C
• Max Temperature (Stainless Steel Reinforced): 1260°C
• Low Temperature Range (Fluoropolymer): -20°C to +150°C
• Dimensions (Thickness): 1.5 mm to 5.0 mm
• Dimensions (Width): 10 mm to 150 mm
• Normal Packing: 30 m/roll

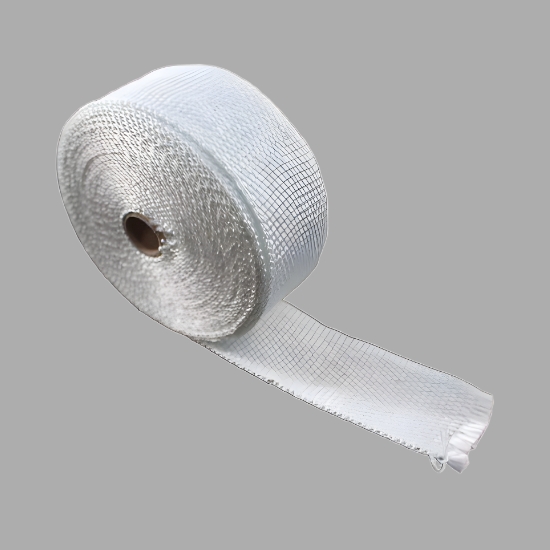

• Specialty Tape Formulations1. Tetraglas (Woven Fiberglass Tape)
• Material: Woven fiberglass tape made with Type E texturized yarns.
• Continuous Operating Temperature: 1000°F / 540°C.
• Chemical Resistance: Excellent resistance to most acids, alkalis, and solvents.
• Weave Style: Available in both plain and drop wrap weave.
• Coatings: Can be coated with Vermiculite or PTFE.
• Option: Available in a lighter weight Industrial Grade material.

2. Tetraglas 3000 (Amorphous Silica Tape)

• Material: Constructed from amorphous silica fibers.
• Continuous Operating Temperature: 2000°F / 1090°C.
• Weave Style: Available as both plain and drop warp tape.
• Coating: Vermiculite coating can be added to increase abrasion resistance.

3. Ceramic Fiber Tape

• Continuous Operating Temperature (Highest): 3000°F / 1649°C.
• Construction: Woven with an insert material for added strength and durability.
• Insert Material Options: Either glass fibers or Inconel wire.
