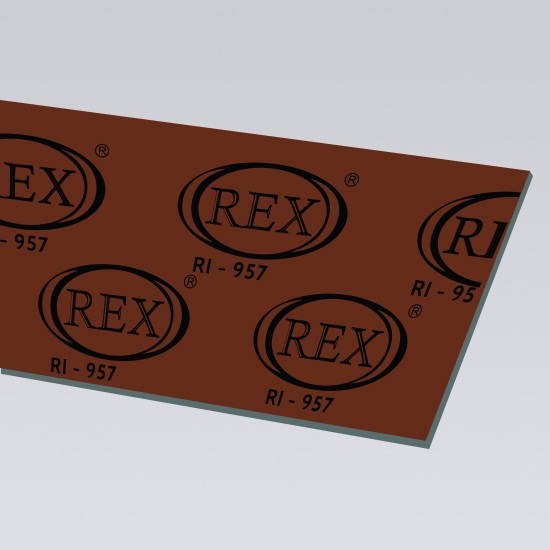

High Pressure Steam Jointing Sheet / Gasket Sheet RI – 957
For wide range of Industrial Applications For wide range of Industrial Applications Recommended for Medium Pressure Steam, Gases, Water & Dilute Chemicals
- Standard thickness: 0.4; 0.5; 0.8; 1.0; 1.5; 2.0; 3.0; 4.0; 5.0 mm
- Standard sheet size: 1.5 x 1.0 m, 1.5 x 2.0m 1.5 x 3.0m and 1.5 x 4.0m
- With wire insertion: 0.8; 1.0; 1.5; 2.0; 3.0; 4.0; 5.0 mm
- Thickness tolerances: 0,4– 0,8 ± 0,1 mm 1,0 – 5,0 ± 10 %
| Compliance |
BS 7531 Grade Y |
| Line Callout Number |
ASTM104F711999A9E13L15IM9 |
| Material |
Aramid Fibres, Inorganic Binders, Mineral Fibres, NBR Elastomer |
| Applications |
Oil, Water, Medium Pressure steam, gas supplies,
Dilute chemicals, pumps, radiators and various Medium Service Conditions. |
| Colour |
Green |
