High Pressure Super Steam Jointing Sheet / Gasket Sheet RI – 962

High Pressure Super Steam Jointing Sheet / Gasket Sheet RI – 962

Rexseal

Close

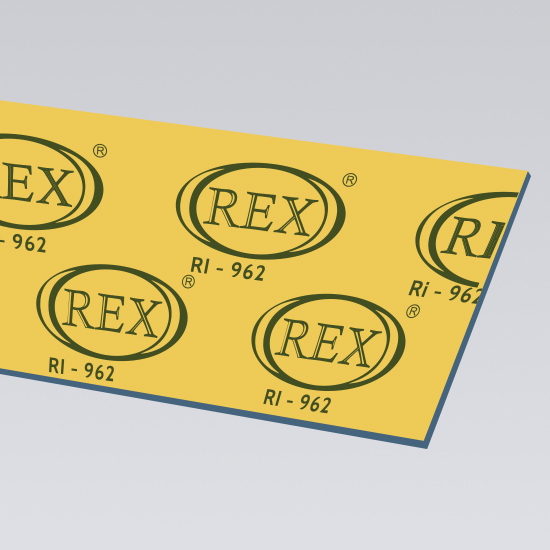

High Pressure Super Steam Jointing Sheet / Gasket Sheet RI – 962

For use with Oil, Solvents, Gases, Steam, Acid & Alkalies.

Excellent Tensile Strength
Outstanding Gas Sealability
High Resistance to creep under elevated temp. & Pressures.

Standard thickness: 0.4; 0.5; 0.8; 1.0; 1.5; 2.0; 3.0; 4.0; 5.0 mm
Standard sheet size: 1.5 x 1.0 m, 1.5 x 2.0m 1.5 x 3.0m and 1.5 x 4.0m
With wire insertion: 0.8; 1.0; 1.5; 2.0; 3.0; 4.0; 5.0 mm
Thickness tolerances: 0,4– 0,8 ± 0,1 mm 1,0 – 5,0 ± 10 %

Chemical Resistant

Compliance	BS 7531 Grade X
Line Callout Number	ASTM104F711999A9E99L157M9
Material	Aramid Fibres, Inorganic Binders, Mineral Fibres, HNBR Elastomer
Applications	Water, Oils, Solvents, Gases, Low Pressure Steam, various dilute chemicals. Use with Heat Exchangers, Boilers, Radiators, Steam Supplies, & Power Plants for High Service Conditions.
Colour	Yellow & Orange

Category: Compressed Non Asbestos Jointing Sheet Product ID: 27377

Technical Specifications

Technical Specifications

Styles	Test Method	Units	Non Metallic	Metallic
Density	DIN 28090-2	gms/cc	1.65 - 2.00	1.65 - 2.00
Tensile Strength	ASTM F 152	Mpa	10.0 - 12.0	11.0 - 13.0
Compressibility	ASTM-F36J	%	≥ 10	≥ 10
Recovery	ASTM-F36J	%	≥ 50	≥ 50
Ignition Loss	ASTM-F495-99a	%	≤ 3.00	≤ 3.00
Gas Permeability (Sealing against nitrogen)	BS 7531	ml/min.	≤ 1.00	≤ 1.00
Residual Stress	BS 7531 / DIN 52913	Mpa	-25	-25
Flexibility @RT (Cracking, delamination or distress)	BS 7531	--	OK	OK
Oil Absorption 5 H @ 150°C (Thickness/ Mass)	BS 7531	%	≤ 6 / 10	≤ 5 / 10
Fuel B Absorption 5 H @ RT (Thickness/ Mass)	ASTM F 146	%	≤ 6 / 10	≤ 5 / 10
Water Absorption 5 H @ 100°C (Thickness)	BS 7531	%	≤ 5	≤ 5
Short Term Temperature	--	°C	450	450
Continuous Service Temperature	--	°C	350	375
Max. Continuous Temperature with Steam	--	°C	300	300
Pressure	--	bar	150	160
