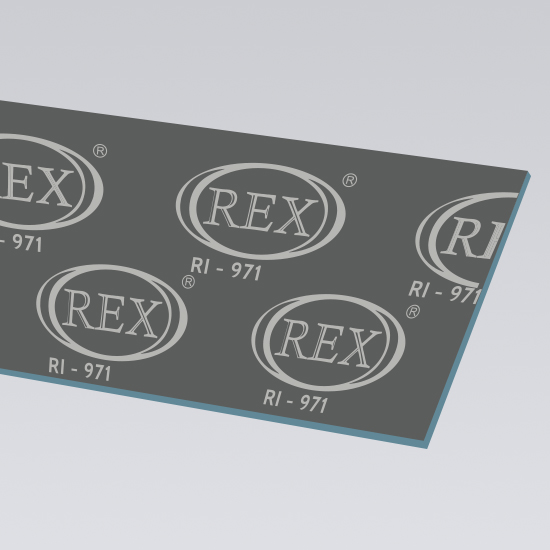

Special Oil Jointing Sheet / Gasket Sheet RI – 971

Special Oil Jointing Sheet / Gasket Sheet RI – 971

Rexseal

Close

Special Oil Jointing Sheet / Gasket Sheet RI – 971

General Purpose for Oils, Solvents, Water, Steam, Gases, Dilute Acids & Alkalies, Glycols & Aqueous Solutions.

Standard thickness: 0.4; 0.5; 0.8; 1.0; 1.5; 2.0; 3.0; 4.0; 5.0 mm
Standard sheet size: 1.5 x 1.0 m, 1.5 x 2.0m 1.5 x 3.0m and 1.5 x 4.0m
With wire insertion: 0.8; 1.0; 1.5; 2.0; 3.0; 4.0; 5.0 mm
Thickness tolerances: 0,4– 0,8 ± 0,1 mm 1,0 – 5,0 ± 10 %

Chemical Resistant

Compliance	BS 7531 Grade X
Line Callout Number	ASTM104F711999A9E9L1537M9
Material	Aramid Fibres, Inorganic Binders, Mineral Fibres, HNBR Elastomer
Applications	Petrochemicals, Steam Supplies, Automobiles, Ship Building & General-Purpose High Service Conditions. Universal Grade suitable for Hot Oils, Fuels, Hydrocarbons and Refrigerants.
Colour	Black

Category: Compressed Non Asbestos Jointing Sheet Product ID: 27379

Technical Specifications

Technical Specifications

Styles	Test Method	Units	Non Metallic	Metallic
Density	DIN 28090-2	gms/cc	1.65 - 2.00	1.65 - 2.00
Tensile Strength	ASTM F 152	Mpa	10.0 - 12.0	11.0 - 13.0
Compressibility	ASTM-F36J	%	≥ 10	≥ 10
Recovery	ASTM-F36J	%	≥ 50	≥ 50
Ignition Loss	ASTM-F495-99a	%	≤ 3.00	≤ 3.00
Gas Permeability (Sealing against nitrogen)	BS 7531	ml/min.	≤ 1.00	≤ 1.00
Residual Stress	BS 7531 / DIN 52913	Mpa	-25	-25
Flexibility @RT (Cracking, delamination or distress)	BS 7531	--	OK	OK
Oil Absorption 5 H @ 150°C (Thickness/ Mass)	BS 7531	%	≤ 6 / 10	≤ 5 / 10
Fuel B Absorption 5 H @ RT (Thickness/ Mass)	ASTM F 146	%	≤ 6 / 10	≤ 5 / 10
Water Absorption 5 H @ 100°C (Thickness)	BS 7531	%	≤ 5	≤ 5

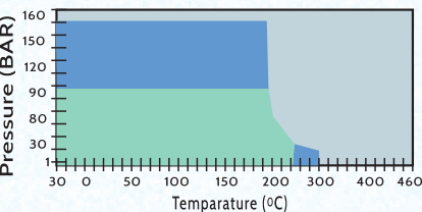

Short Term Temperature	--	°C	450	450
Continuous Service Temperature	--	°C	350	375
Max. Continuous Temperature with Steam	--	°C	300	300
Pressure	--	bar	150	160
